EPC Controller

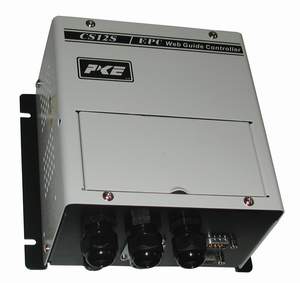

CS12S

Electrical Characteristics:
*Power:AC100V~240V 50/60Hz Switching Power UL CSA CE Approved
*Power Consumption:25VA~80VA
*Motor output:PWM DC24V OUTPUT
*Output protection:in the following cases the system will turn off automatically:
1.output short circuit
4.Temperature reaches75¡CC
*Input/output signal:
Sensor signal----Serial transmission protocol PKnet2.0.
Limit switch----I/O H/L
*Heat dissipation fan:Fan trun on at 45¡CCand off at 42¡CC
*Casing:Metal
CE Certified¡C
